The feeder 3 in 1 in simple

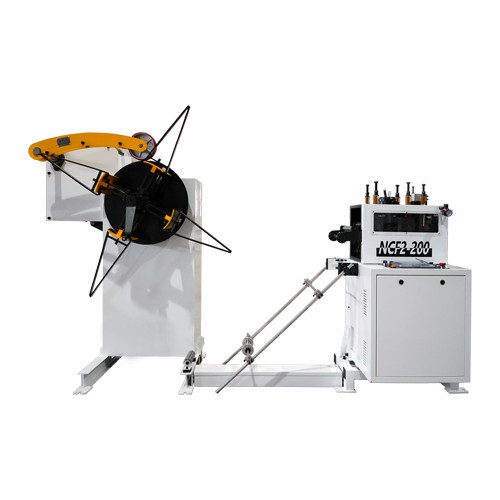

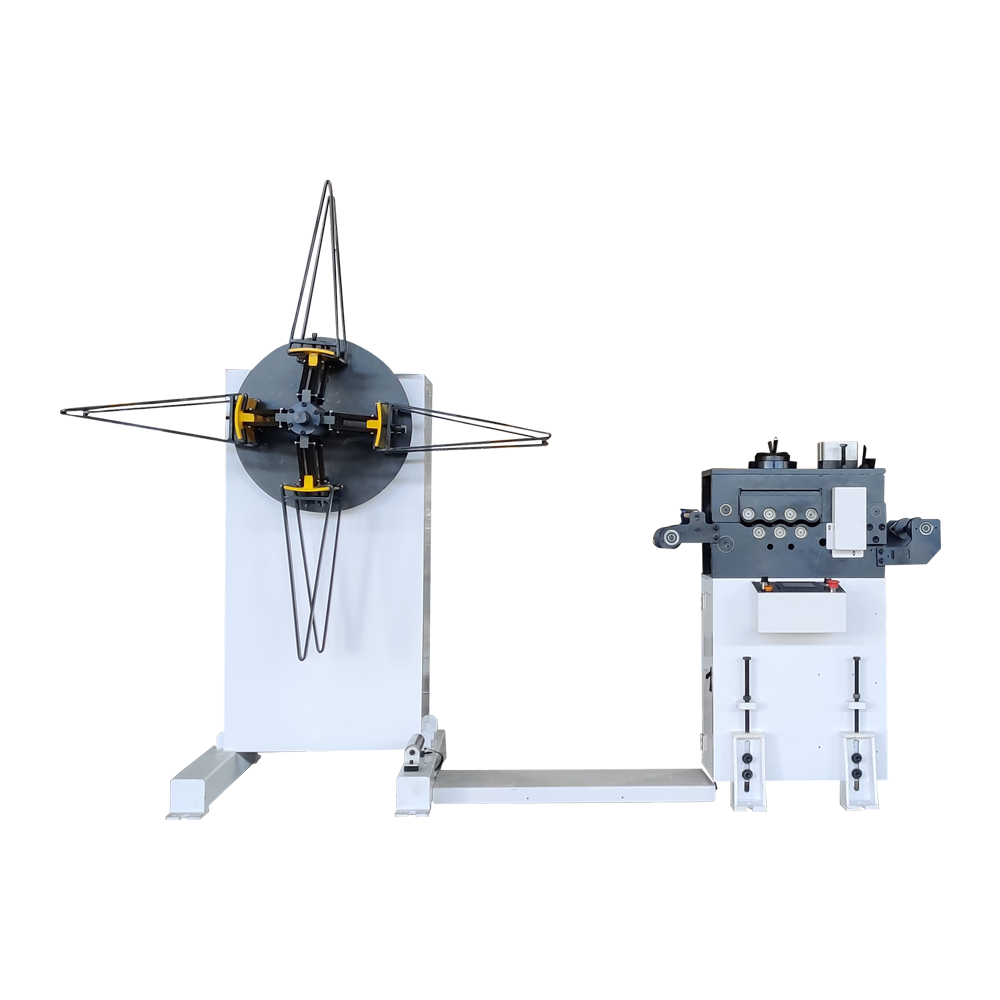

NCF2-200/300/400
- This models designed to autom ate the feeding, levelng, and materalhanding processesforcol materals instamping operations. It serves as a replacement for the curent GL two- in-one combination with an NC servo feding machine model avalable in the market. The previous modeloccupies approximately 5 meters of space, whereas this modelrequires only about 2.9 meters in length, resulting in significant floor space savings.
- The material rack employs an active unloading method and a hand-cranked expansion mechanism.
- Leveling and feding mechanism: It tsynchronzes levelng and feeding functionswhile automatcaly releasing tension to prevent erors durng contnuous stampng processes. It is suitable for automatic stamping of single punch molds as well as continuous molds.
- Height adjustment of the feed line: Manualcontrol.
Service Hotline：
+86 400-166-2658
E-mail：sales@qinfeng-gp.com
Website：qinchao.qinfeng-gp.com
|
Model |
NCF2-200 |
NCF2-300 |
NCF2-400 |
|
Material width |
≤200 |
≤ 300 |
≤ 400 |
|
Material thickness |
0.3-2.2mm |
||
|
Max weight |
1000kg |
2000kg |
3000kg |
|
Uncoiler motor |
AC 0.75kw |
AC 1.5kw |
AC 2.2kw |
|
Coil inner diameter |
￠460-520mm |
||
|
Coil Outer diameter |
￠1300mm |
||
| Max speed |
16m/min |
||
|
Uncoiler expansion |
Manual expansion |
||
|
leveling roller |
￠57mm Up 4 down 3 |
||
|
Feed roller |
2 roots |
||
|
Servo motor |
AC 1.8kw |
AC 1.8kw |
AC 2.9kw |
|
Towing system |
Feed down |
||
|
Voltage |
AC 380V |
||
|
Air pressure |
5kg |
||
| Machine size | 2.9*1.8*2.5 | ||
